Low Cost Custom Molds
Tempo has a variety of protective foam package mold “envelopes” ready for customization. Only an aluminum mold insert is needed to create a custom package interior. Tempo already has the mold sections available to produce package box and lid. That means customer investment in custom package mold cost is minimized.
Tempo modular molds are self contained. It is simple to change the molded package interior by replacing machined aluminum insert with another of different design. Customers benefit from fast turnaround and low customization cost since the cost of the package mold exterior and lid mold already exist.

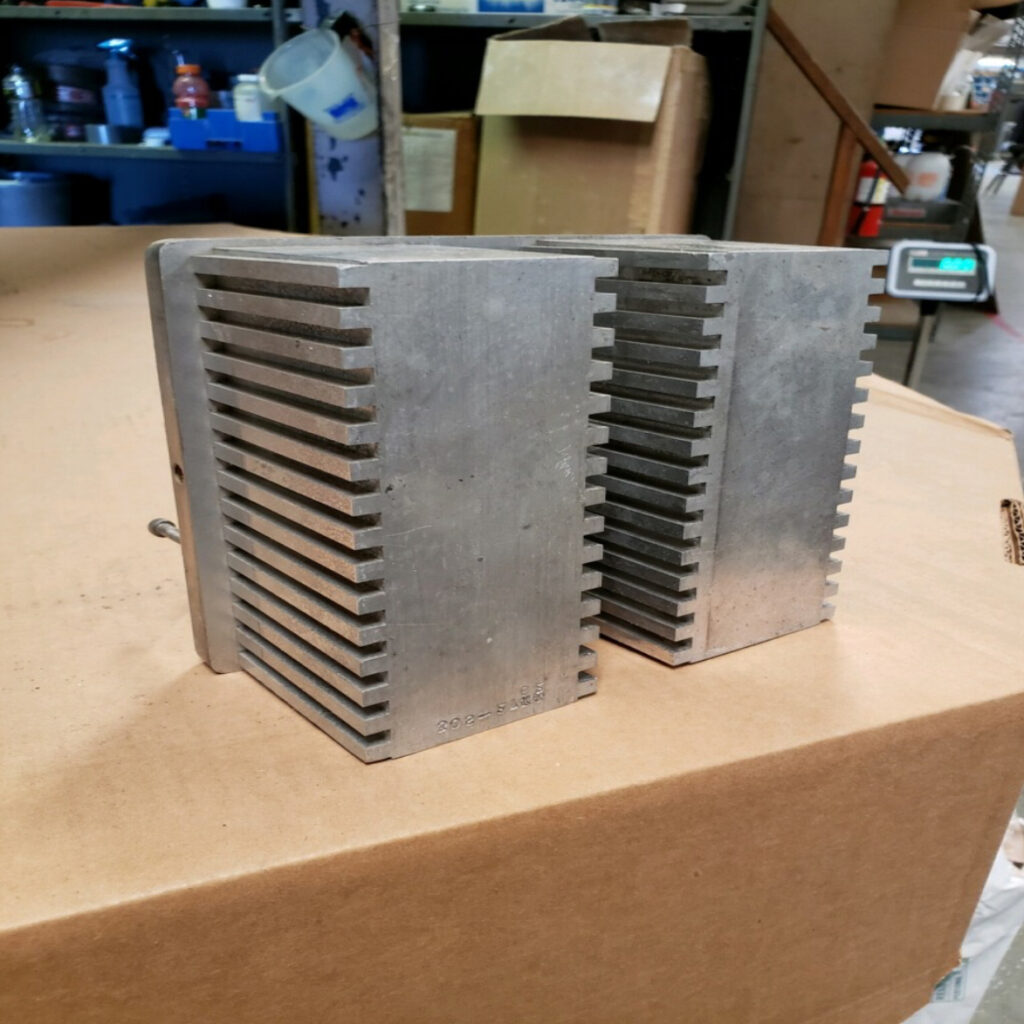

Here is example of a mold insert (#30S-2560). This represents customer investment since rest of mold already exists.

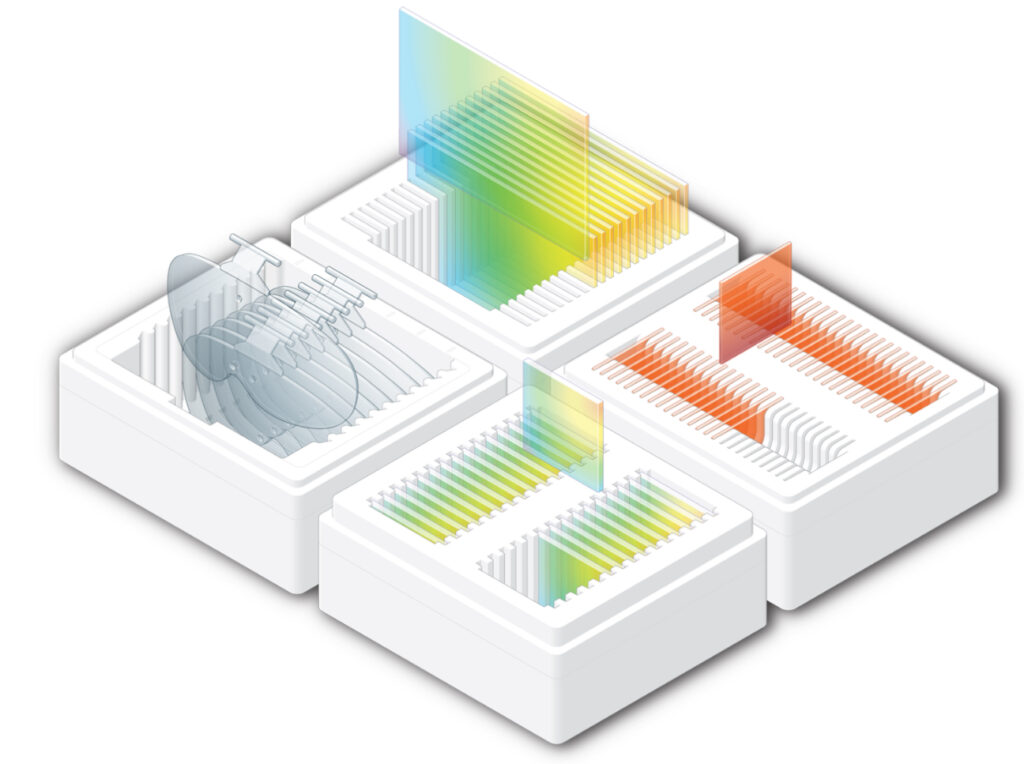

Four versions of the same mold shown above to illustrate the variety of interiors made from custom inserts.

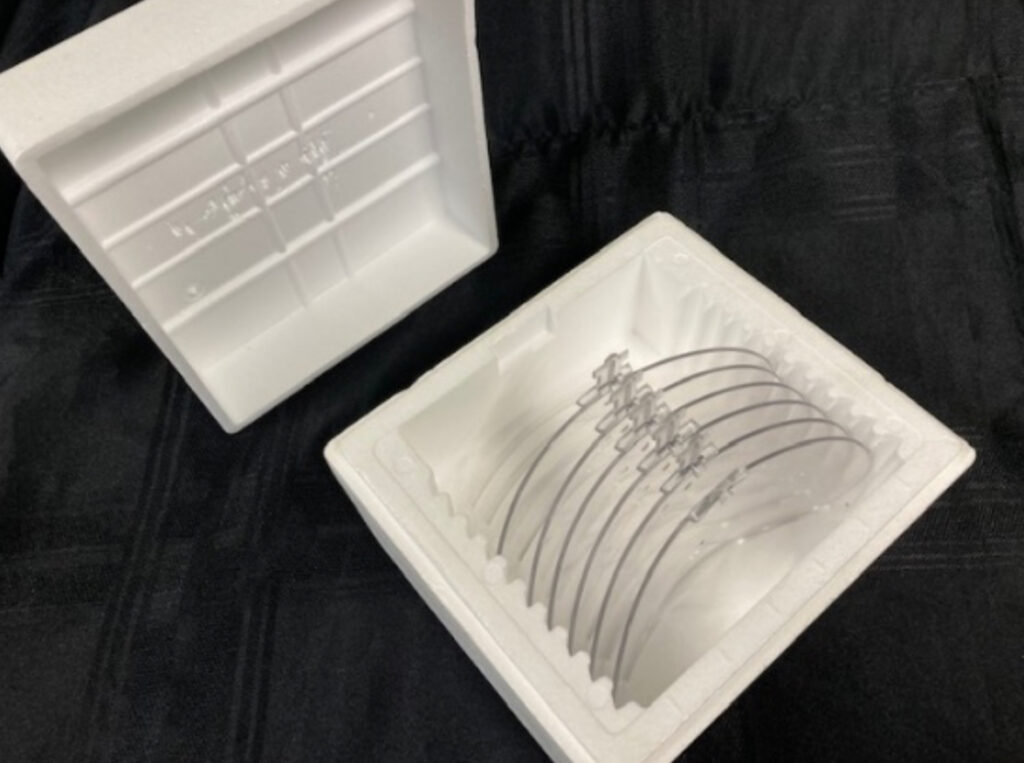

This is photo with lid of the custom version shown above.
Another custom version of the same mold with an existing deep lid.

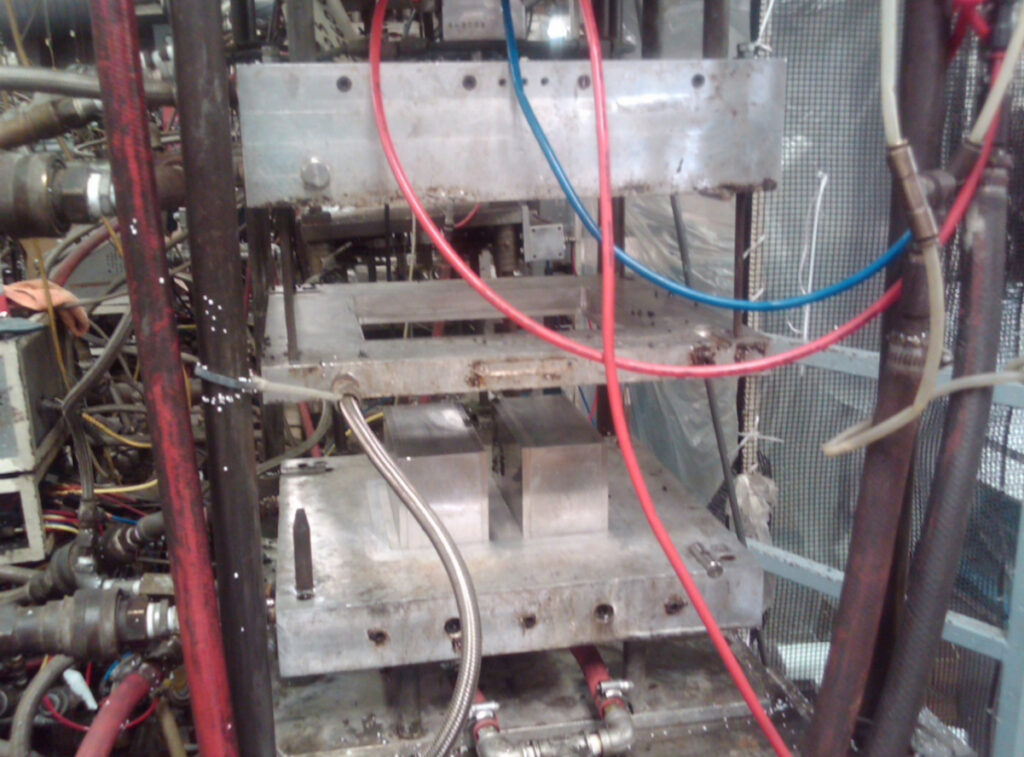

TPC 6575 with mechanical lift eject open, see the guide rods holding eject plate in “drop down” position, mold is installed in molding machine. Available space is 7″ x 6″ x 3″ for customer package. All the packages shown on this page happen to fit into this mold, but with many others, listed below by “available space.”
Tempo offers a selection of pre-existing modular mold sizes for custom foam boxes and lids.
Selecting one of these standard sizes allows customers to reduce mold tooling costs, since only an aluminum insert is required to customize the interior.
Available Standard Sizes (Lids Included) #
5.7″ × 3.75″ × 3″ 1
6.25″ × 6.25″ × 0.75″ 2
9″ × 6″ × 2″ Deep lid available (flexible depth) 3
8.625″ × 5.5″ × 1.875″ 4
7″ × 7″ × 1.5″ Frame depth adjustable (W&M) 5
18.875″ × 8.75″ × 2″ 6
17.4″ × 11.6″ × 1.4″ Frame depth adjustable (EDM) 7
7.5″ × 2.5″ × 2.5″ 8
6″ × 6″ × 7″ 9
9″ × 5.6″ × 2″ 10
7″ × 6″ × 3″ 11
15″ × 6.5″ × 3″ 12
15″ × 7″ × 4.8″ 13
10.5″ × 4.25″ × 4″ 14
10.2″ × 6.7″ × 4.8″ 15
15.6″ × 5.7″ × 1.75″ 16
9″ × 9″ × 4.5″ 17
14″ × 12″ × 7″ 18
13″ × 12″ × 2″ Two cavities each 19
28.5″ × 18.25″ Add frame for height 20
